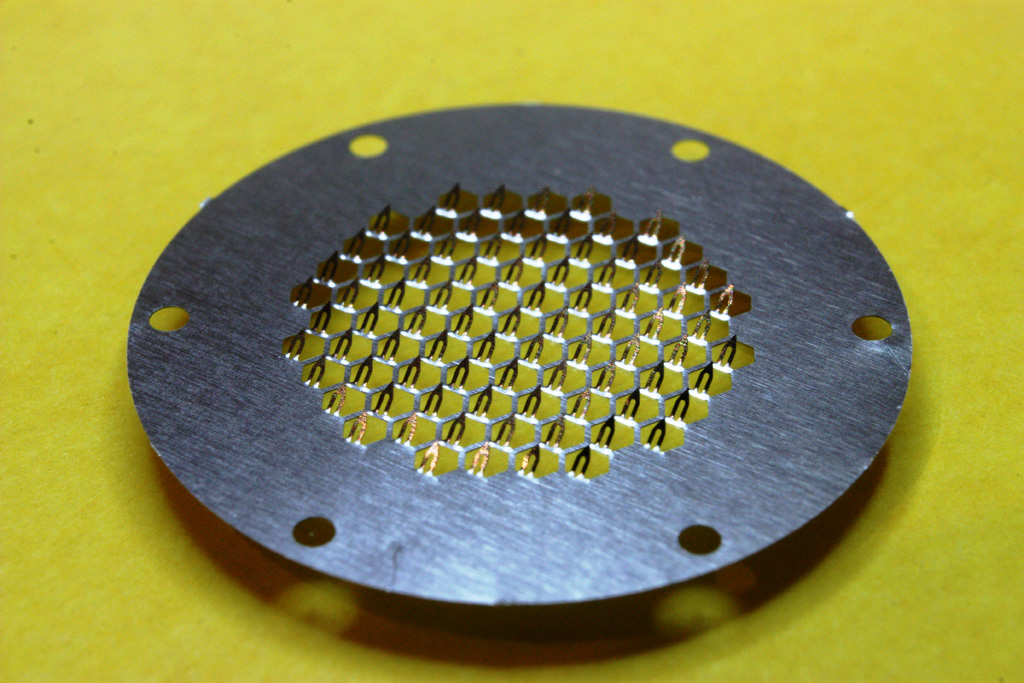

Tilted AdminPatch® 900 is a microneedle array, which has 85 (eighty five) 900 um-long tilted microneedles located within 1 sq. cm circular area. The entire device is 20 mm in diameter and is made of medical-grade SS316L stainless steel.
Each microneedle is tilted approximately 45 degrees from the substrate. This array might be useful for aerodynamic applications such as creating miniature turbulence vortices.
Please click on the image and the small thumbnails under the main image for larger pictures.
This product and/or its method of use is covered by US Patents No. 7,658,728 and No. 8,414,548.
